BiGHTY bimetal, Drilling capacityy 5 mm
BiGHTY bimetal, specially coated, seal ring in A2 and EPDM
BiGHTY is a drilling screw for steel–steel and timber–steel connections that drills its own core hole and cuts its own mating thread in the component. There is therefore no need for pilot-drilling or for selecting the correct drill-hole diameter. The specially shaped drill point prevents the screw from drifting on the surface of the component. This allows fast drilling. It is no longer necessary to centre-punch the drilling site. The BiGHTY drilling screw therefore presents a time-saving alternative to conventional self-tapping screws. The BiGHTY drilling screw can be screwed in with a commercially available spanner or socket spanner.
The BiGHTY bimetal combines the high corrosion resistance of A2 stainless steel with the outstanding mechanical properties of a carbon steel.
bimetal
- A2 stainless steel, high corrosion resistance
- tip: Carbon steel, high hardness and strength
- Stainless steel in accordance with DIN 10088
- Seal ring in A2 and EPDM

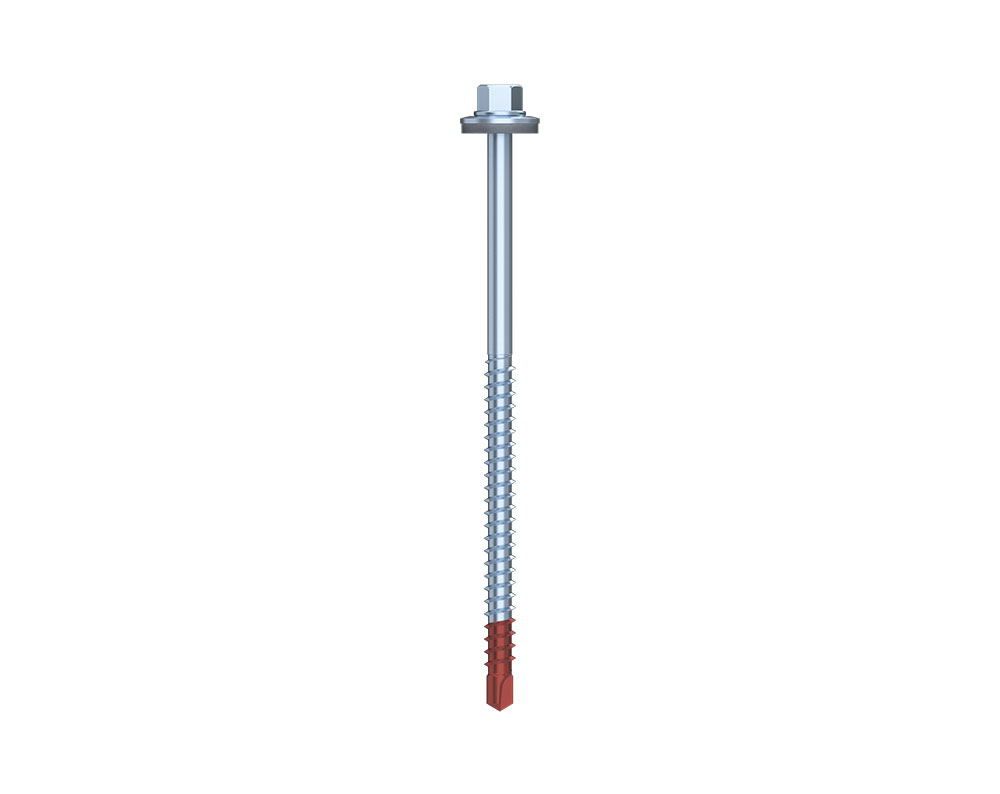

Attention: No red tip, serves only for illustration purposes.
Product table
| Art. no. | Dimension | Sealing Ring Ø | Clamping thickness | Drilling capacity | Drive size | PU | EAN |
|---|---|---|---|---|---|---|---|
| 945889 | 5,5 x 19 mm | 16 mm | 3 mm | 5 mm | SW 8 | 500 Pieces | 4250207463818 |
| 945891 | 5,5 x 25 mm | 16 mm | 7 mm | 5 mm | SW 8 | 500 Pieces | 4250207463832 |
| 945892 | 5,5 x 32 mm | 16 mm | 14 mm | 5 mm | SW 8 | 500 Pieces | 4250207463849 |
| 945893 | 5,5 x 38 mm | 16 mm | 20 mm | 5 mm | SW 8 | 500 Pieces | 4250207463856 |
| 945875 | 5,5 x 50 mm | 16 mm | 32 mm | 5 mm | SW 8 | 200 Pieces | 4250207430940 |
| 945895 | 5,5 x 63 mm | 16 mm | 45 mm | 5 mm | SW 8 | 200 Pieces | 4250207463870 |
| 945896 | 6,3 x 25 mm | 16 mm | 7 mm | 5 mm | SW 10 | 500 Pieces | 4250207463696 |
| 945897 | 6,3 x 32 mm | 16 mm | 14 mm | 5 mm | SW 10 | 200 Pieces | 4250207463702 |
| 945898 | 6,3 x 38 mm | 16 mm | 20 mm | 5 mm | SW 10 | 200 Pieces | 4250207463719 |
| 945841 | 6,3 x 50 mm | 16 mm | 32 mm | 5 mm | SW 10 | 200 Pieces | 4250207463252 |
| 945900 | 6,3 x 63 mm | 16 mm | 45 mm | 5 mm | SW 10 | 200 Pieces | 4250207463733 |
| 945901 | 6,3 x 70 mm | 16 mm | 52 mm | 5 mm | SW 10 | 200 Pieces | 4250207463740 |
| 945902 | 6,3 x 80 mm | 16 mm | 62 mm | 5 mm | SW 10 | 200 Pieces | 4250207463757 |
| 945839 | 6,5 x 120 mm | 16 mm | - | 5 mm | SW 8 | 200 Pieces | 4250207463269 |
| 945915 | 6,5 x 140 mm | 16 mm | - | 5 mm | SW 8 | 200 Pieces | 4250207463887 |
| 945916 | 6,5 x 160 mm | 16 mm | - | 5 mm | SW 8 | 200 Pieces | 4250207463894 |
| 945917 | 6,5 x 180 mm | 16 mm | - | 5 mm | SW 8 | 200 Pieces | 4250207463900 |
| 945918 | 6,5 x 200 mm | 16 mm | - | 5 mm | SW 8 | 200 Pieces | 4250207463917 |
| 945919 | 6,5 x 220 mm | 16 mm | - | 5 mm | SW 8 | 200 Pieces | 4250207463924 |
