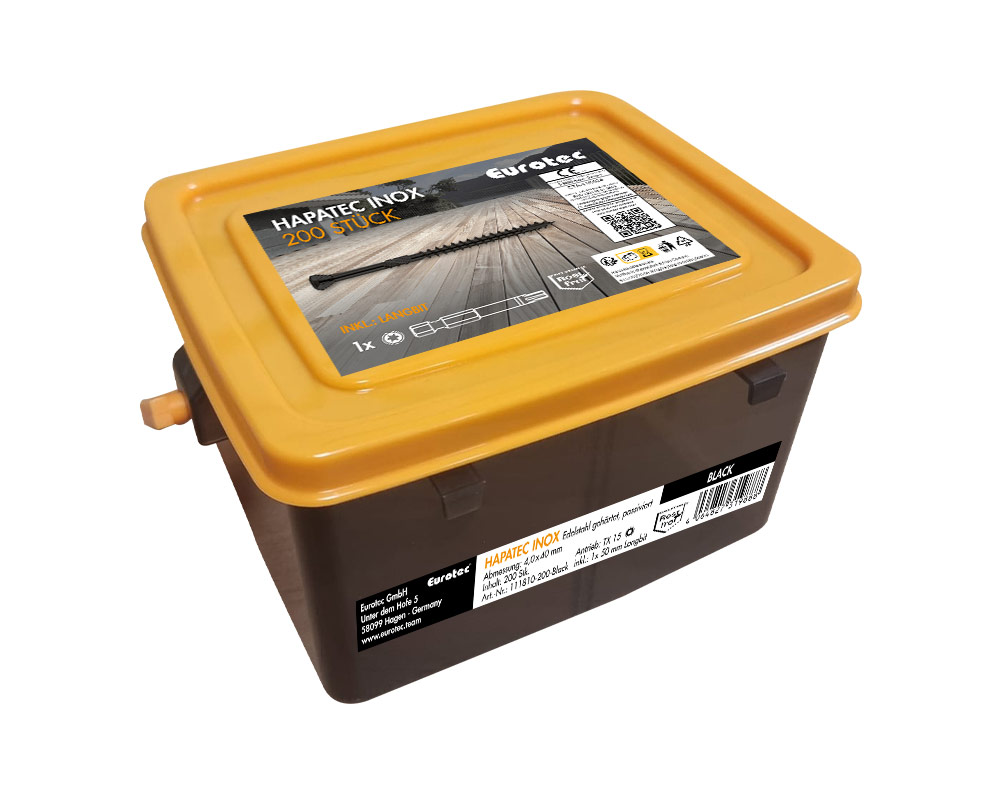

Hapatec in bucket, black
Hardwood panel fastener, hardened stainless steel,
black
- For fixing black façade boards
Product description
The Hapatec screw is made of hardened stainless steel and is a panel fastener, designed especially for hardwood. The screw has a scraping groove at the screw tip, milling ribs above the thread and a countersunk head. The Hapatec is also available in antique and black variants.
Material
- Martensitic stainless steel 1.4006 (C1)
(Stainless steel according to DIN EN 10088)
High resistance- 60% greater breaking torque than the V2A and V4A austenitic stainless steel
- Hardened by heat treatment
- Usable in service classes 1 to 3 according to DIN EN 1995 (Eurocode 5)
- Limited corrosion resistance
- No acid resistance
- Unsuitable for woods containing tannins such as cumarú, oak, intsia, robinia, etc.
- Unsuitable for use in aggressive, salty or chlorinated environments
- Magnetisable
Advantages
- Milling ribs simplify countersinking in all wood types
- The special screw geometry reduces the risk of wood splintering
- But pre-drilling is strongly recommended especially for hardwoods used in terrace and façade construction!
- Corrosion-resistant up to and including service class 3 – ‘freely exposed structures’ according to DIN EN 1995 (Eurocode 5)
- National and international certifi cation
- No screw-hammering when screwed in with TX drive
Certification
- European Technical Assessment ETA 11/0024
- Self-tapping screws as wood fasteners
- Hapatec screws as wood fasteners
Product table
| Art. no. | Dimension | Drive | PU | EAN |
|---|---|---|---|---|
| 111810-200-BLACK | 4,0 mm x 40 mm | TX 15 | 200 | 4064827319888 |
| 111811-200-BLACK | 4,0 mm x 50 mm | TX 15 | 200 | 4064827319895 |
| 111812-200-BLACK | 4,0 mm x 60 mm | TX 15 | 200 | 4064827319901 |
| 111813-200-BLACK | 4,5 mm x 50 mm | TX 20 | 200 | 4064827319918 |
| 111814-200-BLACK | 4,5 mm x 60 mm | TX 20 | 200 | 4064827319925 |
| 111815-200-BLACK | 4,5 mm x 70 mm | TX 20 | 200 | 4064827319932 |
| 111816-200-BLACK | 4,5 mm x 80 mm | TX 20 | 200 | 4064827319949 |
| 111817-200-BLACK | 5,0 mm x 50 mm | TX 25 | 200 | 4064827319956 |
| 111818-200-BLACK | 5,0 mm x 60 mm | TX 25 | 200 | 4064827319963 |
| 111819-200-BLACK | 5,0 mm x 70 mm | TX 25 | 200 | 4064827319970 |
| 111820-200-BLACK | 5,0 mm x 80 mm | TX 25 | 200 | 4064827319987 |
