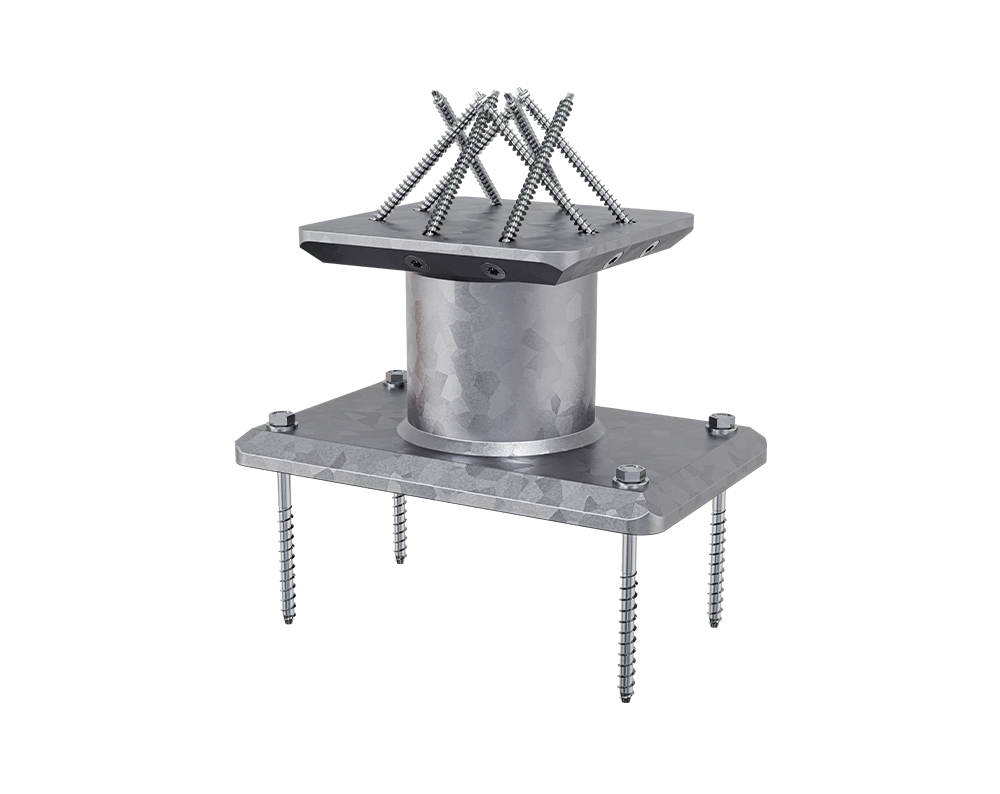

Structus Base

Name: Structus Base
Brand: Eurotec

The Structus Base connectors from Eurotec have been developed to connect structural members designed and constructed in accordance with EN 1995-1-1:2025.

The Structus Base is the result of the further development of the Structus connectors, which makes timber skyscrapers a reality. The inclined KonstruX screws in the top plate guarantee optimum force transmission in all directions.

Advantages/Specifications

High load-bearing capacity
Quick site installation and time saving
Service classes 1 and 2

Material

S275 galvanised

Certification

ETA application is in progress and will be available soon.

Product data sheet

Art. no.	Model	Plate top	Plate bottom	Tube section	Tube length	Minimum column section	PU	EAN
946350	Structus Base 1217	120 x 120 x 15 mm	180 x 180 x 15 mm	60,3 x 5 mm	170 mm	120 x 120 mm	1	4064827807941
946351	Structus Base 1616	220 x 220 x 20 mm	88,9 x 6,3 mm	160 mm	160 x 160 mm	1	4064827808160	160 x 160 x 20 mm
946352	Structus Base 1813	180 x 310 x 25 mm	101,6 x 8 mm	130 mm	180 x 180 mm	1	4064827808245	180 x 180 x 25 mm
946353	Structus Base 2213	220 x 350 x 25 mm	139,7 x 8 mm	130 mm	220 x 220 mm	1	4064827808795	220 x 220 x 25 mm
946354	Structus Base 2612	260 x 390 x 30 mm	163,8 x 10 mm	120 mm	260 x 260 mm	1	4064827809525	260 x 260 x 30 mm
