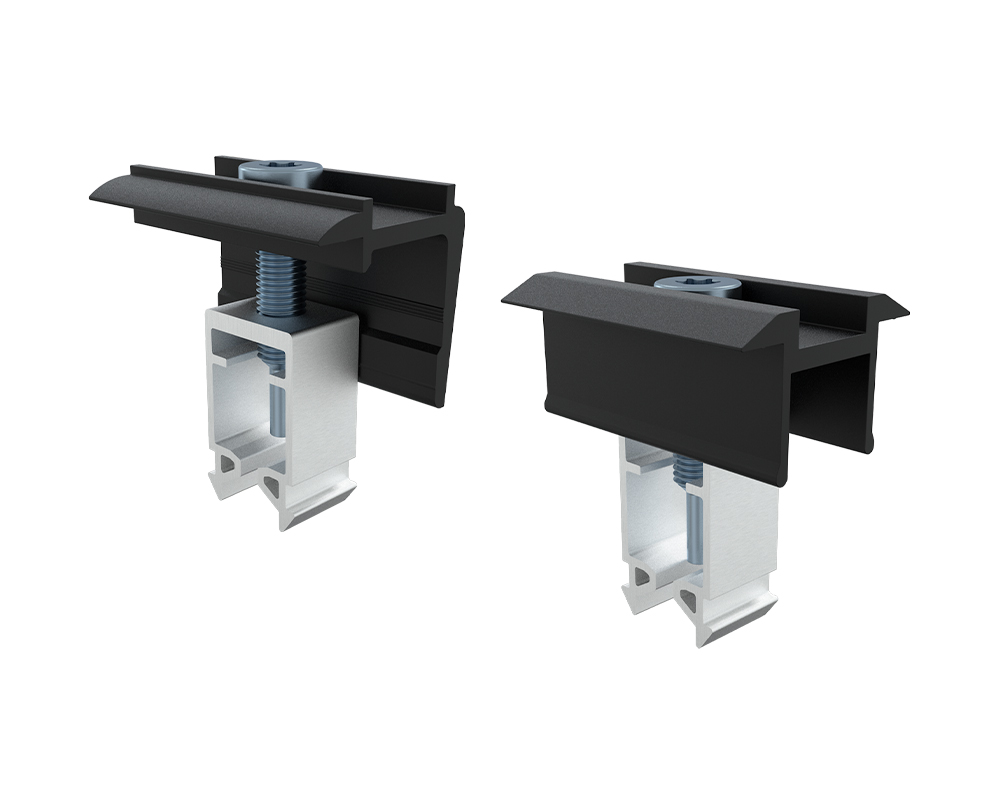

Module clamps for short rail

The module clamp is suitable for solar modules with a frame height of 30 - 35 mm. The solar modules are fastened with a simple click function. The module clamp for short rails is only compatible with the short profile trapezoidal sheet.

Advantages

Weather-resistant
Quick and easy installation

Material

Aluminium

Art. no.	Name	Clamp thickness = module height	Clamp length	Material	PU	EAN
SOL100699	End clamp	30-35 mm	37,6 mm	Aluminium	40	4064827165706
SOL100700	Centre clamp	30-35 mm	37,6 mm	Aluminium	40	4064827165713
