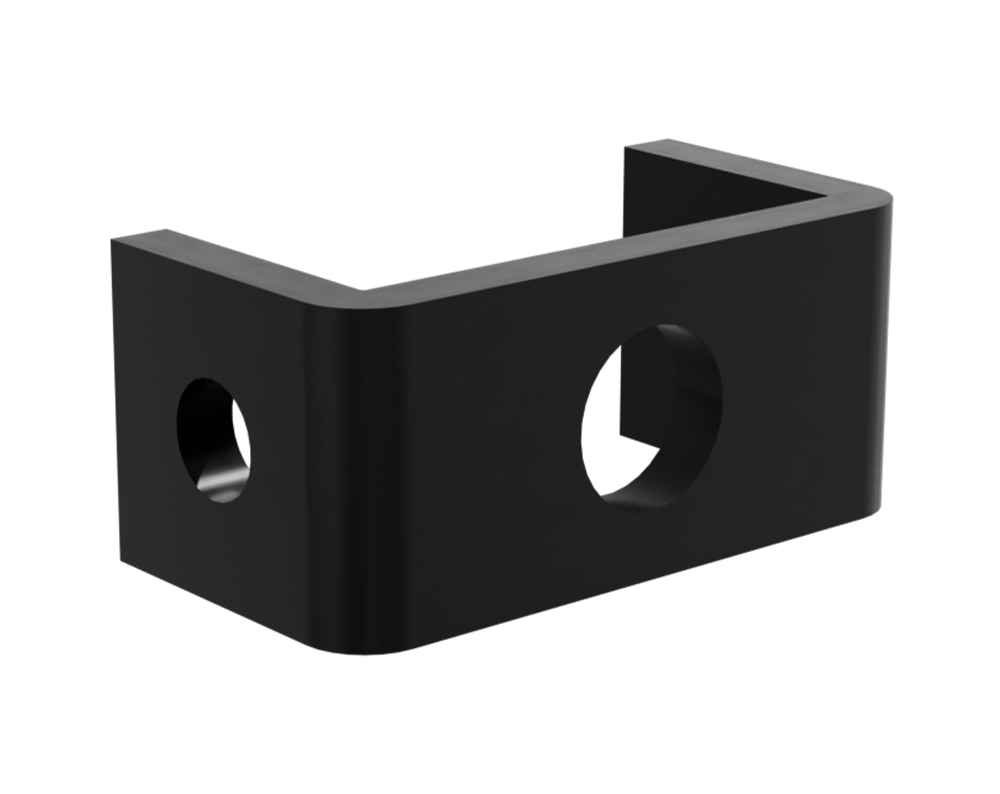

Façade fastening bracket LayTec

The Façade fastening bracket LayTec from Eurotec enables the secure installation of the LayTec façade system for ventilated rainscreen façades or façades with insulation. In combination with the EiSYS-P A4 and the M8 locking nuts with serrated flanges, the LayTec base profiles can be firmly and reliably anchored to the façade structure.

Advantages/Features

  • Suitable for insulated façades and ventilated rainscreen façades
  • Compatible with the LayTec façade system
  • Insert system: Quick and easy insertion of solar modules without additional clamping → reduces working time and installation effort

Material

  • Stainless steel A2 1.4301
Art. no. Dimensions Material PU EAN
SOL100769 35,6 x 17,5 x 15 mm Stainless steel A2 1.4301 20 4064827538654
× ❮ ❯
