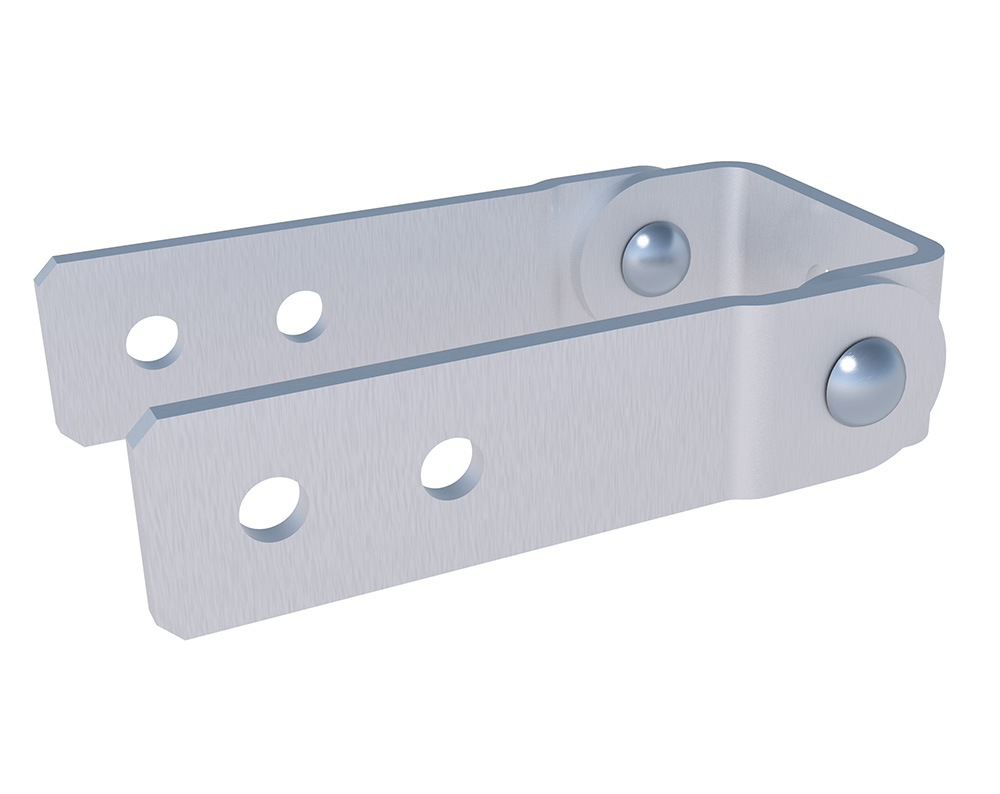

TERRA Joint 90°

The TERRA joints are used to optimally connect the aluminium system profiles. Since the joints can rotate freely on one side, they can be positioned individually along the profile rail. When constructing deck substructures, the TERRA joints are suitable for angles of up to 90° or 180°. The EVO hinge connector is used to align profiles horizontally, allowing, for example, curved deck sections to be created.

Advantages/Specifications

Freely rotating joint
For angles up to 90° or 180°
Individual positioning on the profile rail
Rivet made of A2 stainless steel per DIN 6791

*Delivery includes screws.

Product data sheet

Art. no.	Dimensions	Material	PU*	EAN
975587	19 x 50,5 x 78,5 mm	S235 Hot-dip galvanized	4	4064827141236
