EiSYS-P A4
Façade/adjusting screw
What can they be used for?

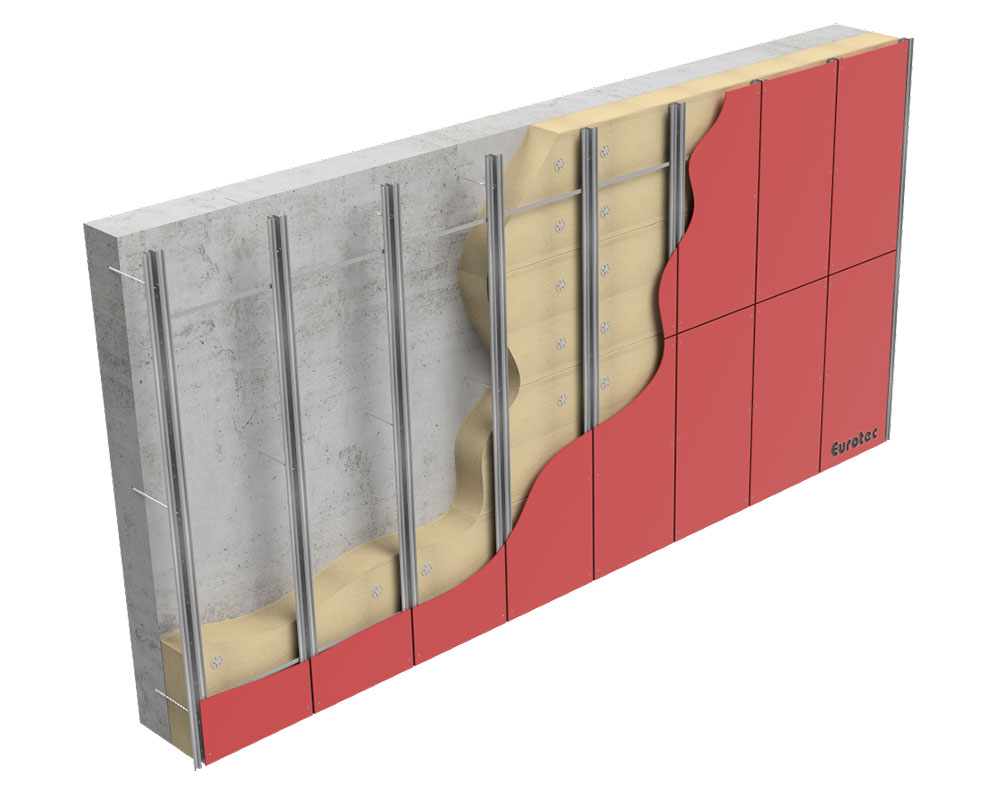

- For use with suspended façades
- For rear-ventilated façades if the outer wall is designed with timber formwork, fibre cement boards or other façade elements
Properties

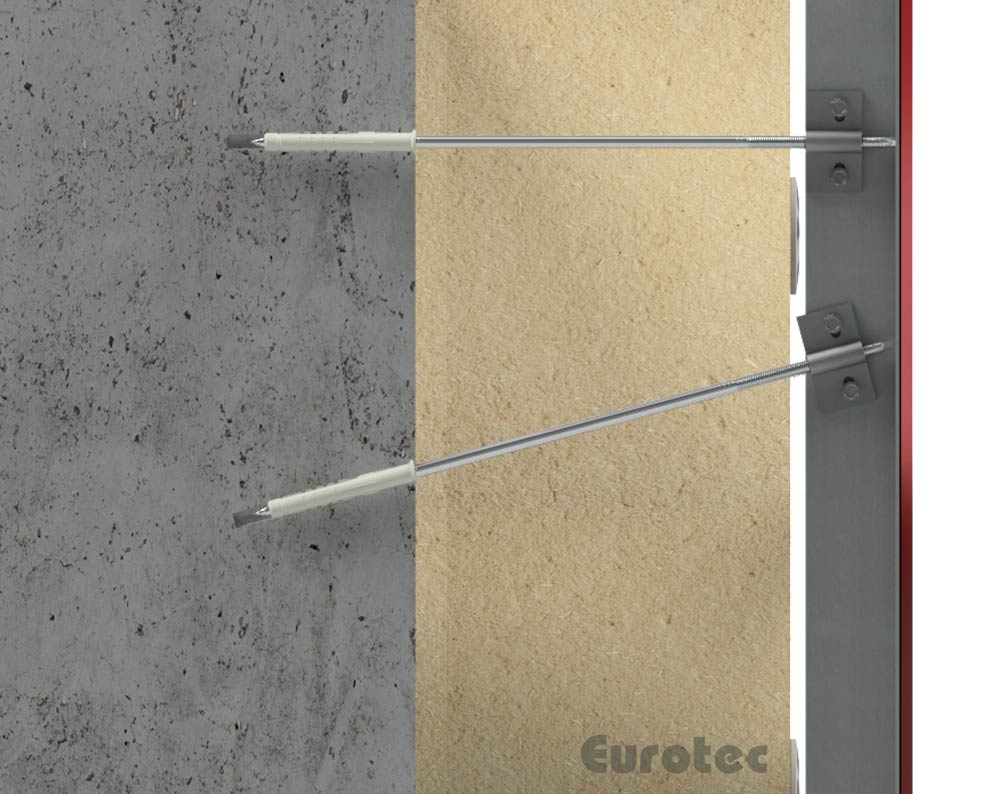

- This screw is fastened to the building wall with a plug
- The freely rotating threaded sleeve at the top of the screw allows the façade‘s substructure to be aligned parallel to the building wall
Advantages
- Cost savings and reduced assembly times
- High loads can be transmitted through the framework screw connections even in the case of larger distances from the building wall
- Full design freedom is maintained for the façade
* Screws not regulated according to approval Z-9.1-897
Product table
| Art. no. | Dimension | Insulation thickness | PU | EAN |
|---|---|---|---|---|
| 946213* | 7,0 x 165 mm | 40 mm | 50 Pieces | 4251314719188 |
| 946214* | 7,0 x 185 mm | 60 mm | 50 Pieces | 4251314719195 |
| 946215* | 7,0 x 205 mm | 80 mm | 50 Pieces | 4251314719201 |
| 946216 | 7,0 x 225 mm | 100 mm | 50 Pieces | 4251314719218 |
| 946217 | 7,0 x 245 mm | 120 mm | 50 Pieces | 4251314719225 |
| 946218 | 7,0 x 265 mm | 140 mm | 50 Pieces | 4251314719232 |
| 946219 | 7,0 x 285 mm | 160 mm | 50 Pieces | 4251314719249 |
| 946220 | 7,0 x 305 mm | 180 mm | 50 Pieces | 4251314719256 |
| 946221 | 7,0 x 325 mm | 200 mm | 50 Pieces | 4251314719263 |
| 946222 | 7,0 x 345 mm | 220 mm | 50 Pieces | 4251314719270 |
| 946223 | 7,0 x 365 mm | 240 mm | 50 Pieces | 4251314719287 |
| 946224 | 7,0 x 385 mm | 260 mm | 50 Pieces | 4251314719294 |
| 946225 | 7,0 x 405 mm | 280 mm | 50 Pieces | 4251314719300 |
| 946226 | 7,0 x 425 mm | 300 mm | 50 Pieces | 4251314719317 |
