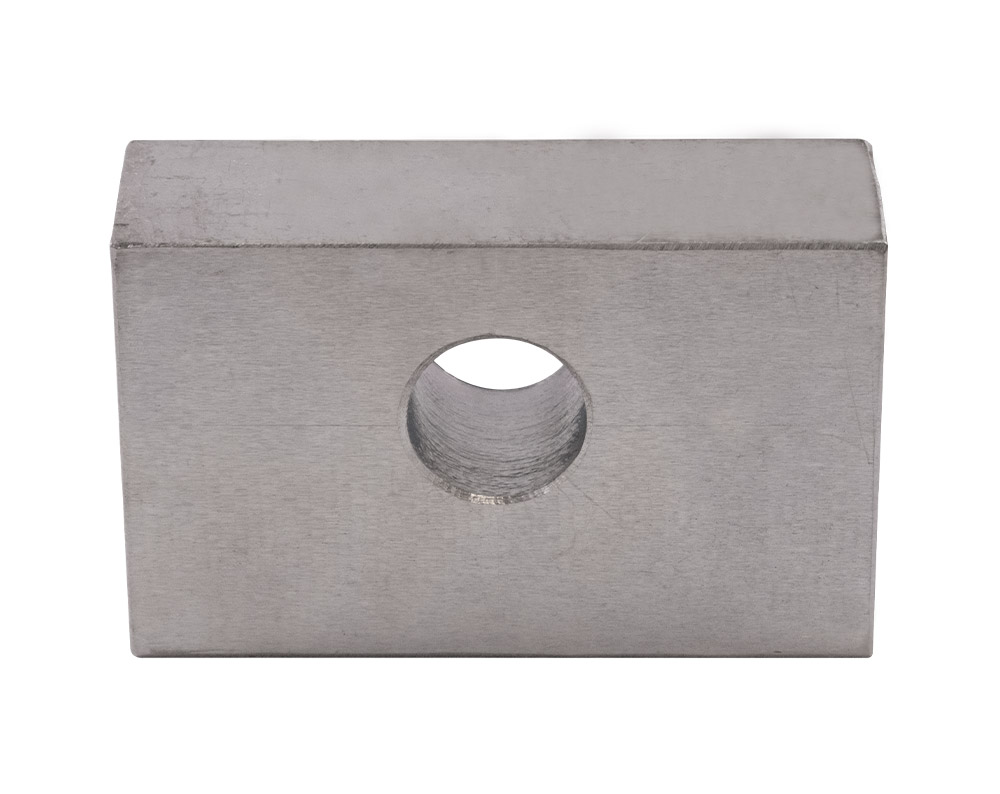

Tension rod pressure plate 620
The Tension rod pressure plate 620 can be combined with the corresponding tension rod 620. The former is necessary to prevent a deformation of the tension rod and to increase the tensile forces.
Material
- Galvanised S355 construction steel
Advantages
- Ideal for anchoring cross-laminated timber elements (CLT)
- For installation in wood and concrete
Certification
- European Technical Assessment ETA-19/0020 requested
Note
- The Tension rod pressure plate 620 may only be used in combination with the tension rod 620 (Art. no.: 954232).
Instructions for use
The tension rods are placed on the planking in the floor area and fastened to the stem and, if necessary, to the sole plate with screws or anchor nails. In this regard, the connection can safely transfer tensile, suction and shearing forces into the tension rod via the screws and finally into the base plates via a dowel.
Product table
| Art. no. | Designation | Dimension | Material | Matching tension rod Zuganker | PU | EAN |
|---|---|---|---|---|---|---|
| 954230 | Tension rod pressure plate 620 | 80 x 70 x 20 mm | Galvanised S355 construction steel | Tension rod 620 (954232) | 1 | 4251314733566 |
