Longitudinal connector base profile LayTec

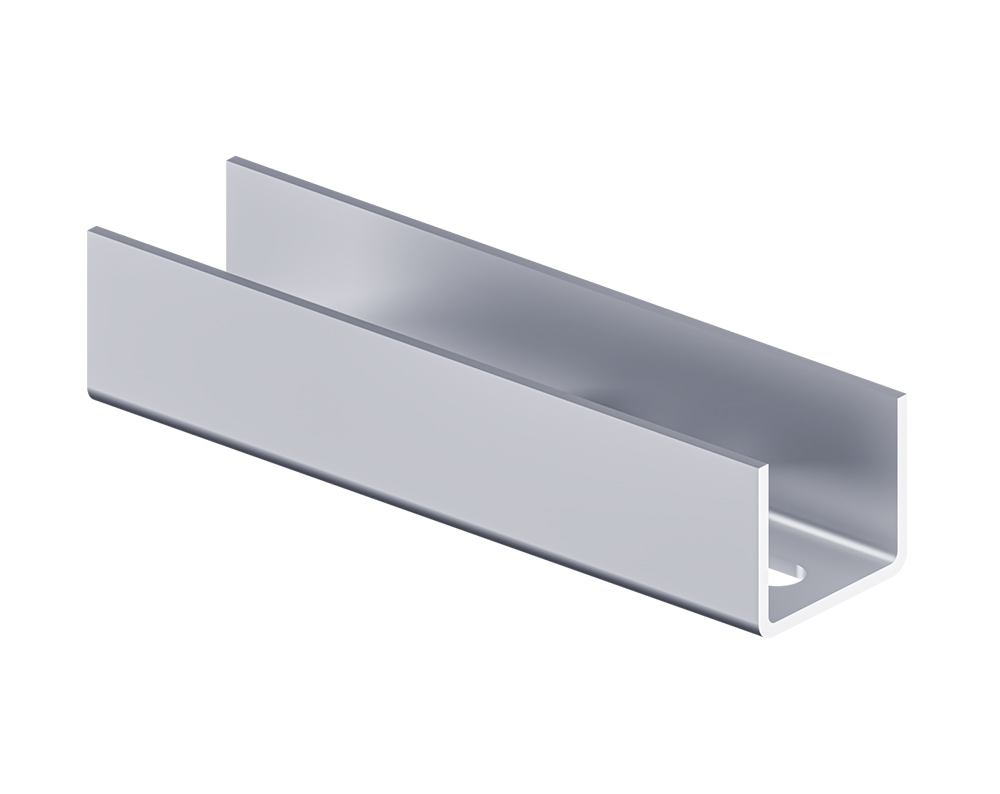

The longitudinal connector for the base profile is used to connect two individual LayTec base profiles. The U-shaped connector is simply placed against the profiles from below and fastened using the nuts and bolts supplied. Thanks to the punched-in spacers, the connector is automatically centered between the profiles and leaves a gap of approx. 6 mm between the modules for thermal expansion of the profiles. The connector is only used for connection and does not replace any fixing points on the roof.
Advantages/Features
- Quick connection of two profiles
- Enables longitudinal expansion of the profiles
Material
- Stainless steel A2
Product table
| Art. no. | Dimensions | Wall thickness | Material | PU | EAN |
|---|---|---|---|---|---|
| SOL100765 | 100 x 31,6 x 26,5 mm | 2,0 mm | Stainless steel A2 | 50 | 4064827376133 |
